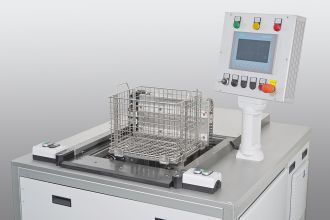

Coating system for dip coating with fluoropolymers for smaller assemblies. Work area product carrier is 300mm long, 250mm wide and 220mm high. Tank volume up to 70l. Load capacity 15kg. Process time approx. 6 min. Approx. 280 euro cards / h Comfortable operation, all process parameters are monitored, partial immersion is possible.
The PRIMA and OPTIMA coating machines are specially designed for processing volatile substances such as HFE. Great emphasis has been placed on the process reliability and ease of use.
Coating of the assembled boards is done by immersion in the fluoropolymer liquid contained in the tank of the machine. The boards are placed in baskets which are posed on a lift system. By closing the lid and pressing the start button the immersion operation and subsequent drying is carried out automatically. Once the process is completed the basket can be changed easily. The process time is about six minutes.
The baskets can be easily adjusted to the board geometry or can be replaced by customized racks. All models are equipped with a cold trap for solvent recovery. The solvent condensate can be collected in a container or flow direct back into the tank. This provides an extremely economical and environmentally friendly process flow. A water separator collects condensing water in a separate container. The systems are therefore compliant with any legal requirements governing the use of HFE.
The color touch screen displays a wide range of information and offers great ease of adjustment, such as setting up partial immersions. Adapted languages are possible. The machine is equipped with filters for cleaning of the fluoropolymer liquid. The liquid level is controlled and detected in terms of volume. All major states are monitored. Required data output is via the control interfaces.
Dimensions in mm: B/W980 x T/D1150 x H1730 Workspace: L300 x B/W250 x H220 Basketloading: 15 kg Throughput: ca. 280 Europakarten/h Fluoropolymer capacity: 60l/91Kg-70l/106Kg Weight without filling: ca. 570 kg Working height: 1125mm Supply 230 oder 400V / 3kW 6 bar / 30 Liter pro Min
